**To add comments to this set, please click on the right arrow for the individual file you have a comment on, it is from there that you can add comments**

A test of 2 microphone arrays at 7 positions:
    -115, -90, -45, 0, 45, 90, 115 degrees - 0 degrees being face forward.

    AT4022 parallel spaced boundary array in 3 configurations:

    * AT4022 - 8.75" x 5.5" boundary, 1" inset

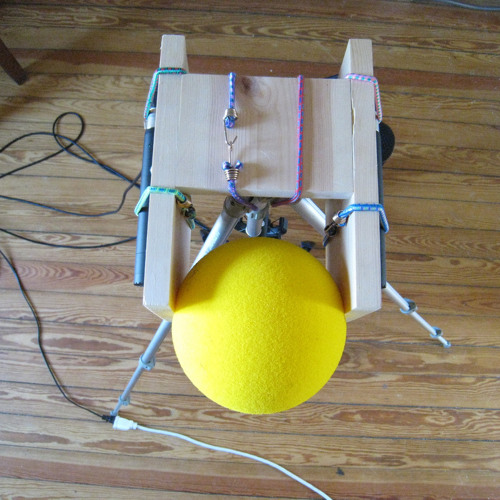

    * AT4022 - 8.75" x 5.5" boundary, 1" inset with a 6" high density uncoated foam ball
    * AT4022 - 5.5" x 4" boundary, 1" inset, 1" bevel
    * AT4022 - 5.5" x 4' boundary, 1" inset, 1" bevel with a 6" high density uncoated foam ball
    * MS MKH 30/40 pair using equal power decoding (1:1).

    Both AT4022 mounts are spaced 6.875" apart.
    Two sounds are tested, a cello and pink noise.

    Speaker was distanced 45" from microphones. MS array was placed under the AT4022 array.
    All measurements approximate.

    Some noise from the outside is audible as is a refrigerator hum in some of the segments at approx -30 degrees from center (0 degrees).

    Photos available at
    http://www.flickr.com/photos/13902208@N08/sets/72157623534315755/
  http://www.flickr.com/photos/13902208@N08/sets/72157623543831101/

Stereo Array Testing - AT4022 - MKH3040

A test of 2 microphone arrays at 7 positions:
        -115, -90, -45, 0, 45, 90, 115 degrees - 0 degrees being face forward.

        MS MKH 30/40 pair using equal power decoding.
        AT4022 parallel spaced boundary array in 3 configurations:
        * 3" inset
        * 1" inset
        * 1" inset with a high density foam ball

        In both recordings the order is MS, AT4022 with 3" inset, AT4022 with 1" inset, AT4022 with 1" and ball

        Speaker was distanced 45" from microphones. MS array was placed under the AT4022 array.
        All measurements approximate.

        Some noise from the outside is audible as is a refrigerator hum in some of the segments at approx -30 degrees from center (0 degrees).

    Photos available at
    http://www.flickr.com/photos/13902208@N08/sets/72157623534315755/

  Rob Danielson edited the third recording.

5.5" x 4" boundary, 1" bevel -> cello

5.5" x 4" boundary, 1" bevel -> pink noise

5.5" x 4" boundary, 1" bevel, 6" foam ball -> cello

5.5" x 4" boundary, 1" bevel, 6" foam ball -> pink noise

A test of 2 microphone arrays at 7 positions:
                  -115, -90, -45, 0, 45, 90, 115 degrees - 0 degrees being face forward.

                  MS MKH 30/40 pair using equal power decoding.
                  AT4022 parallel spaced boundary array in 3 configurations:
                  * 3" inset
                  * 1" inset
                  * 1" inset with a high density foam ball

                  In both recordings the order is MS, AT4022 with 3" inset, AT4022 with 1" inset, AT4022 with 1" and ball

                  Speaker was distanced 45" from microphones. MS array was placed under the AT4022 array.
                  All measurements approximate.

                  Some noise from the outside is audible as is a refrigerator hum in some of the segments at approx -30 degrees from center (0 degrees).

              Photos available at
              http://www.flickr.com/photos/13902208@N08/sets/72157623534315755/

            Rob Danielson edited the third recording.

8.75" x 5.5" boundary -> cello

8.75" x 5.5" boundary, 6" foam ball -> cello

8.75" x 5.5" boundary, 6" foam ball -> pink noise

A test of 2 microphone arrays at 7 positions:
                    -115, -90, -45, 0, 45, 90, 115 degrees - 0 degrees being face forward.

                    MS MKH 30/40 pair using equal power decoding.
                    AT4022 parallel spaced boundary array in 3 configurations:
                    * 3" inset
                    * 1" inset
                    * 1" inset with a high density foam ball

                    In both recordings the order is MS, AT4022 with 3" inset, AT4022 with 1" inset, AT4022 with 1" and ball

                    Speaker was distanced 45" from microphones. MS array was placed under the AT4022 array.
                    All measurements approximate.

                    Some noise from the outside is audible as is a refrigerator hum in some of the segments at approx -30 degrees from center (0 degrees).

                Photos available at
                http://www.flickr.com/photos/13902208@N08/sets/72157623534315755/

              Rob Danielson edited the third recording.

8.75" x 5.5" boundary -> pink noise

A test of 2 microphone arrays at 7 positions:
                        -115, -90, -45, 0, 45, 90, 115 degrees - 0 degrees being face forward.

                        MS MKH 30/40 pair using equal power decoding.
                        AT4022 parallel spaced boundary array in 3 configurations:
                        * 3" inset
                        * 1" inset
                        * 1" inset with a high density foam ball

                        In both recordings the order is MS, AT4022 with 3" inset, AT4022 with 1" inset, AT4022 with 1" and ball

                        Speaker was distanced 45" from microphones. MS array was placed under the AT4022 array.
                        All measurements approximate.

                        Some noise from the outside is audible as is a refrigerator hum in some of the segments at approx -30 degrees from center (0 degrees).

                    Photos available at
                    http://www.flickr.com/photos/13902208@N08/sets/72157623534315755/

                  Rob Danielson edited the third recording.

MS 1:1 -> pink noise

MS 1:1 -> cello
