A sneak preview of Hideaway Studio's new Klockwerks realtime DDS Clocked FX System in action...

Klockwerks draws upon the concept that many have experimented with in providing a digital signal processor with an externally generated variable CPU clock in place of its original fixed frequency source. This method of modification opens up a very interesting world as time is no longer periodic and linear. Since most digitally generated acoustic effects rely on clocking audio into a buffer at a regular rate all manner of interesting effects are realised when the clock rate is modulated in realtime. Such effects were discovered a long time ago when the first BBD based chorus and delay units were developed. These early devices relied on variable clocking to achieve realtime pitch shifting effects effectively due to the sample rate at the point the audio was loaded into the front of the memory buffer being different by the time it arrived at the end of the buffer. This causes a stretching and compressing effect on the timing of the samples which can result in some very curious effects – especially if the memory is forming the basis of a complex effect such as a reverse reverb or a multi-tapped delay. Almost all current retrofitable modifications offered to enable such effects tend to be manually or voltage controlled with little in the way of sanity checking and often the effect can be rather random/uncontrollable with high potential for causing the modified FX unit to crash.

Klockwerks overcomes this by offering a much more controlled environment for CPU clock modulation using an advanced computer controlled DDS subsystem (Direct Digital Synthesis) operating within parameters tested to be within acceptable working limits for the Donor FX Unit. The system goes several stages further by then offering a number of modulator programs that modify the CPU clock frequency and offer a significant number of realtime parameter sources via 4 MIDI CC controllers (MIDI CC20 thru 23), MIDI Clock, Note On and Note Velocity as well as an analog CV input. All patches created on the Klockwerks system can then be attributed to a patch on the Donor FX Unit and stored in non-volatile memory as a named patch for instant recall via program changes.

Introducing Hideaway Studio's Klockwerks

Made with Korg Wavestation being utterly mangled by Hideaway Studio's infamous Klockwerks DDS Clocking system under MIDI control...

There was no pitch bending on the Wavestation - that was all created in real-time by Klockwerks sliding the clock rate to an old ART MultiVerb LT by the same MIDI notes sent to the Wavestation with a slow slew rate dialled in to create a weird sliding effect.   Because the clock rate is not musically related to the pitch, the results are very much atonal in this case.  The Multiverb LT is running 100% wet to achieve this effect.

Klockwerks draws upon the concept that many have experimented with in providing a digital signal processor with an externally generated variable CPU clock in place of its original fixed frequency source. This method of modification opens up a very interesting world as time is no longer periodic and linear. Since most digitally generated acoustic effects rely on clocking audio into a buffer at a regular rate all manner of interesting effects are realised when the clock rate is modulated in realtime. Such effects were discovered a long time ago when the first BBD based chorus and delay units were developed. These early devices relied on variable clocking to achieve realtime pitch shifting effects effectively due to the sample rate at the point the audio was loaded into the front of the memory buffer being different by the time it arrived at the end of the buffer. This causes a stretching and compressing effect on the timing of the samples which can result in some very curious effects – especially if the memory is forming the basis of a complex effect such as a reverse reverb or a multi-tapped delay. Almost all current retrofitable modifications offered to enable such effects tend to be manually or voltage controlled with little in the way of sanity checking and often the effect can be rather random/uncontrollable with high potential for causing the modified FX unit to crash.

Klockwerks overcomes this by offering a much more controlled environment for CPU clock modulation using an advanced computer controlled DDS subsystem (Direct Digital Synthesis) operating within parameters tested to be within acceptable working limits for the Donor FX Unit. The system goes several stages further by then offering a number of modulator programs that modify the CPU clock frequency and offer a significant number of realtime parameter sources via 4 MIDI CC controllers (MIDI CC20 thru 23), MIDI Clock, Note On and Note Velocity as well as an analog CV input. All patches created on the Klockwerks system can then be attributed to a patch on the Donor FX Unit and stored in non-volatile memory as a named patch for instant recall via program changes.

Here is a segued demo of the Klockwerks system in action:

https://soundcloud.com/hideaway-studio/klockwerks-sneak-preview-ii

Composition & Recording Copyright D.A.Wilson, Hideaway Studio 2021.

Wavestation & Klockwerks: Temporal Slyders...

Cerdo - Pig Bedit

https://colorsquadrecords.bandcamp.com/album/c-o-l-o-r-s-q-u-a-d-0-1-7

C O L O R S Q U A D 0 1 7

The Compilation!

Gingey Tunkmen

stutter melancholy (redux) [C O L O R S Q U A D 0 1 7]

Superlative Whispers

fragment journey

the weather in west philly on sat 4 26

Hidden Groves/Sylvassa Taggar (2014)

jenkagalaxy 02 3-13 (2007)

Reub = Cla

A sneak preview of Hideaway Studio's new Klockwerks realtime DDS Clocked FX System in action...

Klockwerks draws upon the concept that many have experimented with in providing a digital signal processor with an externally generated variable CPU clock in place of its original fixed frequency source.  This method of modification opens up a very interesting world as time is no longer periodic and linear.  Since most digitally generated acoustic effects rely on clocking audio into a buffer at a regular rate all manner of interesting effects are realised when the clock rate is modulated in realtime.  Such effects were discovered a long time ago when the first BBD based chorus and delay units were developed. These early devices relied on variable clocking to achieve realtime pitch shifting effects effectively due to the sample rate at the point the audio was loaded into the front of the memory buffer being different by the time it arrived at the end of the buffer.  This causes a stretching and compressing effect on the timing of the samples which can result in some very curious effects – especially if the memory is forming the basis of a complex effect such as a reverse reverb or a multi-tapped delay. Almost all current retrofitable modifications offered to enable such effects tend to be manually or voltage controlled with little in the way of sanity checking and often the effect can be rather random/uncontrollable with high potential for causing the modified FX unit to crash.

Klockwerks overcomes this by offering a much more controlled environment for CPU clock modulation using an advanced computer controlled DDS subsystem (Direct Digital Synthesis) operating within parameters tested to be within acceptable working limits for the Donor FX Unit. The system goes several stages further by then offering a number of modulator programs that modify the CPU clock frequency and offer a significant number of realtime parameter sources via 4 MIDI CC controllers (MIDI CC20 thru 23), MIDI Clock, Note On and Note Velocity as well as an analog CV input. All patches created on the Klockwerks system can then be attributed to a patch on the Donor FX Unit and stored in non-volatile memory as a named patch for instant recall via program changes.

Klockwerks System in Action: Sneak Preview

Exclusive premiere of two tracks taken from the forthcoming Earthlings 2 compilation courtesy of ADJ of Pyramid Transmissions.

Earthlings 2 (Pyramid Transmissions) MP3

Spekulant - Tum Tam One

Having another play with Hideaway Studio's truly insane Klockwerks system.

Here a classic Korg Minipops 45 is being fed into the a MultiVerb LT (patch 09) modified as a "donor unit" for the Klockwerks system.  The LT is being modulated with various LFO rates and waveforms from one of the clock modulator programs on the Klockwerks handset....  in this case the LFO shape, depth, offset and rate are being tweaked on the fly by hand but these can be acurately controlled from a MIDI sequence using up to 4 separate CC channels as well a CV input.  LFOs and slide effects can also be synchronised to MIDI clock at various clock rate divisions.

One powerful and unique aspect of the Klockwerks system is that it binds clock modulation patches with patches on the donor FX unit to form an instant recall system.  Such patches are stored in NV memory and then called up instantly via MIDI program changes.

Patch 09 on the MultiVerb LT seems to respond well to this sort of thing!... the resulting output is truly mangled beyond recognition!!

Recording Copyright D.A.Wilson, Hideaway Studio.

Klockwerks System in Action: Mangling a Korg MiniPops 45!

A bizarre watery effect created by feeding back the output of an ART LT FX processor to its input whilst randomly modulated by the Klockwerks System.. the regenerative path was created with a Binson tube Pre-Mix fed back via a DBX II 128 classic limiter and the Hideaway Dual Tube Hybrid Filter centred around 1KHz in tube resonance.   The resulting chaos was then further filtered with two Hideaway Studio TEQ-9B All Tube Gyrator EQs.   Before each plunge effect was wild self-oscillation which was removed using a mixture of Izotope RX and cut/paste.   Each plunge effect itself was created by rapidly winding down the clock frequency just at the point the self-oscillation was tamed.  No deliberate tone or noise sources whatsoever were used in the making of this recording.

I love this kind of pseudo chaotic self-making stuff!   Its a pig to setup but when it works it can be really interesting..

Original Sound Design & Recording Copyright D.A.Wilson

Klockwerks: Regenerative Waters...

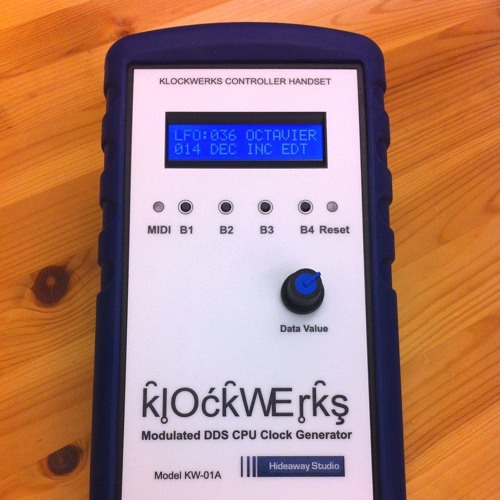

Demonstrating the stock Windy.+# patch on a Hideaway Studio Klockwerks handset in this case driving a old ART MultiVerb LT modified for Klockwerks..

In this demo the MultiVerb is being modulated with a random LFO program.  The Klockwerks system is being fed from a Roland JX-8P (factory patch ArcoString) - first you hear the 8P directly into a conventional reverb - then the output from the Klockwerks system is brought into the mix.  Although lo-fi in nature, the effect can be really quite beautiful when used with care...

This is one of all manner of interesting effects the Klockwerks system can create.

Klockwerks draws upon the concept that many have experimented with in providing a digital signal processor with an externally generated variable CPU clock in place of its original fixed frequency source. This method of modification opens up a very interesting world as time is no longer periodic and linear. Since most digitally generated acoustic effects rely on clocking audio into a buffer at a regular rate all manner of interesting effects are realised when the clock rate is modulated in realtime. Such effects were discovered a long time ago when the first BBD based chorus and delay units were developed. These early devices relied on variable clocking to achieve realtime pitch shifting effects effectively due to the sample rate at the point the audio was loaded into the front of the memory buffer being different by the time it arrived at the end of the buffer. This causes a stretching and compressing effect on the timing of the samples which can result in some very curious effects – especially if the memory is forming the basis of a complex effect such as a reverse reverb or a multi-tapped delay. Almost all current retrofitable modifications offered to enable such effects tend to be manually or voltage controlled with little in the way of sanity checking and often the effect can be rather random/uncontrollable with high potential for causing the modified FX unit to crash.

Klockwerks overcomes this by offering a much more controlled environment for CPU clock modulation using an advanced computer controlled DDS subsystem (Direct Digital Synthesis) operating within parameters tested to be within acceptable working limits for the Donor FX Unit. The system goes several stages further by then offering a number of modulator programs that modify the CPU clock frequency and offer a significant number of realtime parameter sources via 4 MIDI CC controllers (MIDI CC20 thru 23), MIDI Clock, Note On and Note Velocity as well as an analog CV input. All patches created on the Klockwerks system can then be attributed to a patch on the Donor FX Unit and stored in non-volatile memory as a named patch for instant recall via program changes.

More demos of Klockwerks in action here:

https://soundcloud.com/hideaway-studio/klockwerks-sneak-preview-ii

Composition & Recording Copyright D.A.Wilson 2019.

Klockwerks: Windy.+# (Mangling the Roland JX-8P)
